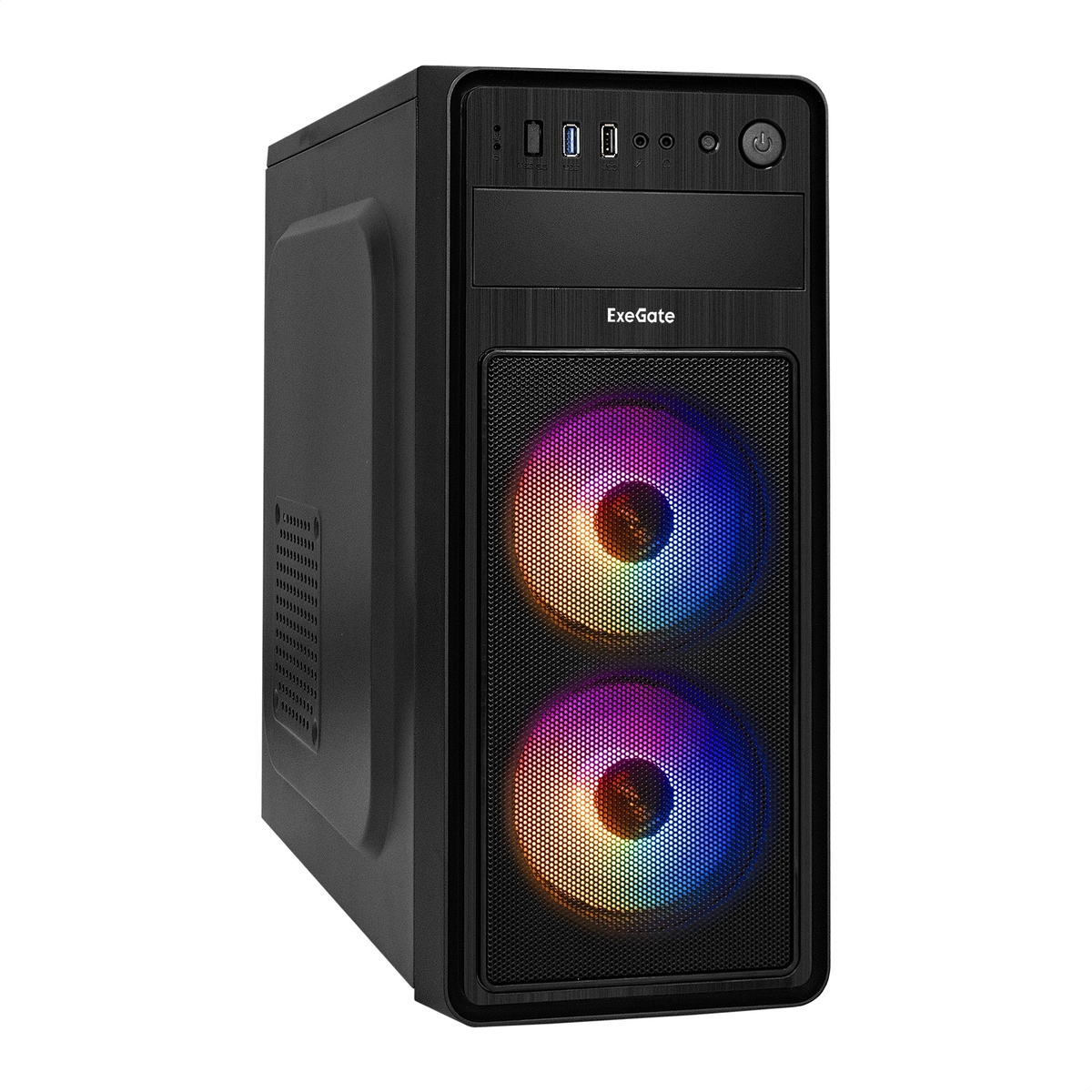

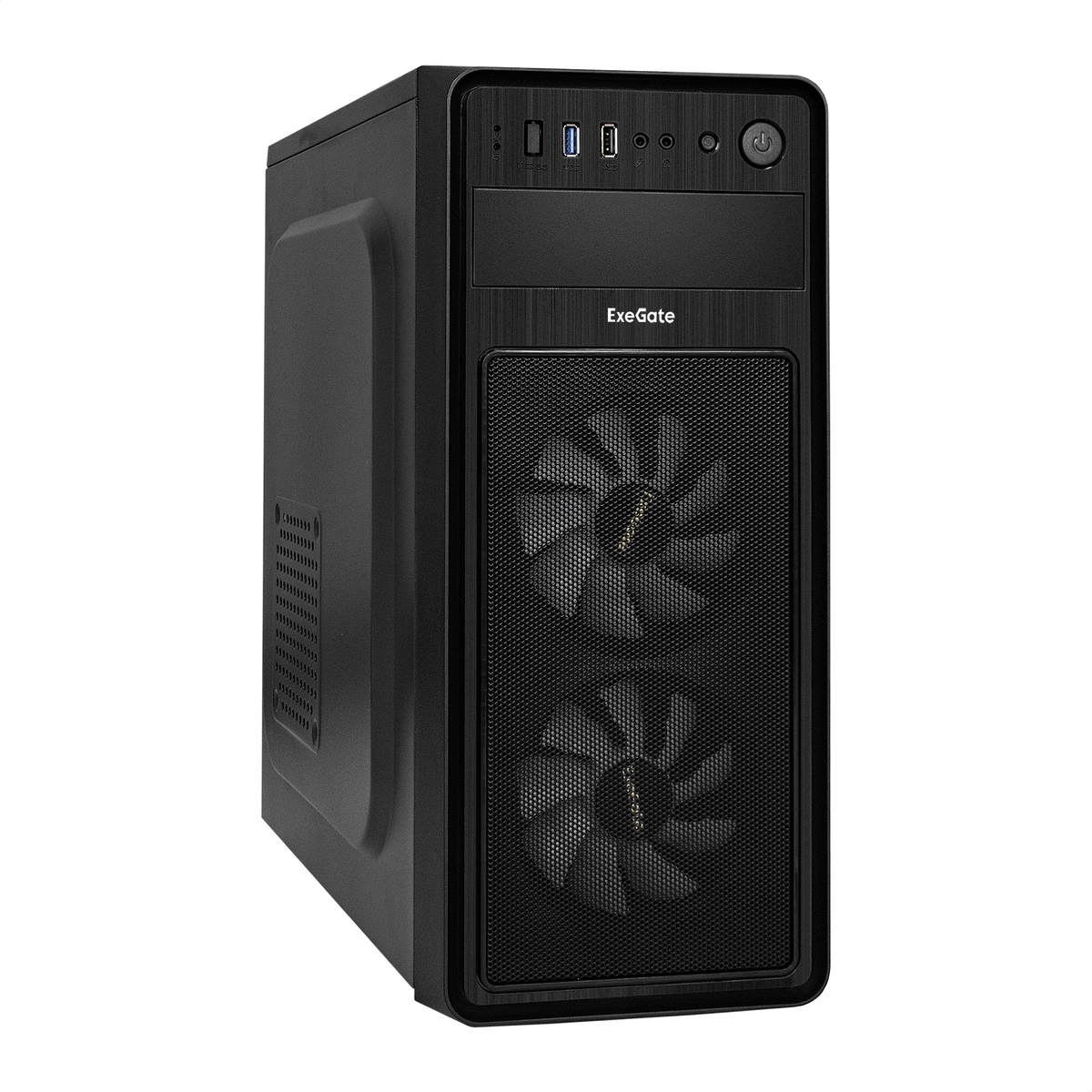

Miditower ExeGate EVO-5017
Specification
| Cases Features | |
| Case Type | Miditower |
| Motherboard Support | ATX, mATX, ITX |
| Chassis Material | Steel |
| Material Thickness, mm | 0,6 |
| Material of front and side panels | Plastic/steel |
| Screwless Access | Yes |
| Number of screws for mounting the side panel, pcs | 6 |
| LED Backlight | RGB backlight in the front panel |
| Case Color | Black |
| Chassis Color | Black |
| Power | |
| PSU Type | ATX |
| Power supply location | At the top of the rear side |
| PSU models | w/o PSU |
| PSU models | 500NPX, 600NPX, 700NPX |
| Recommended ExeGate PSU | Series NPX |

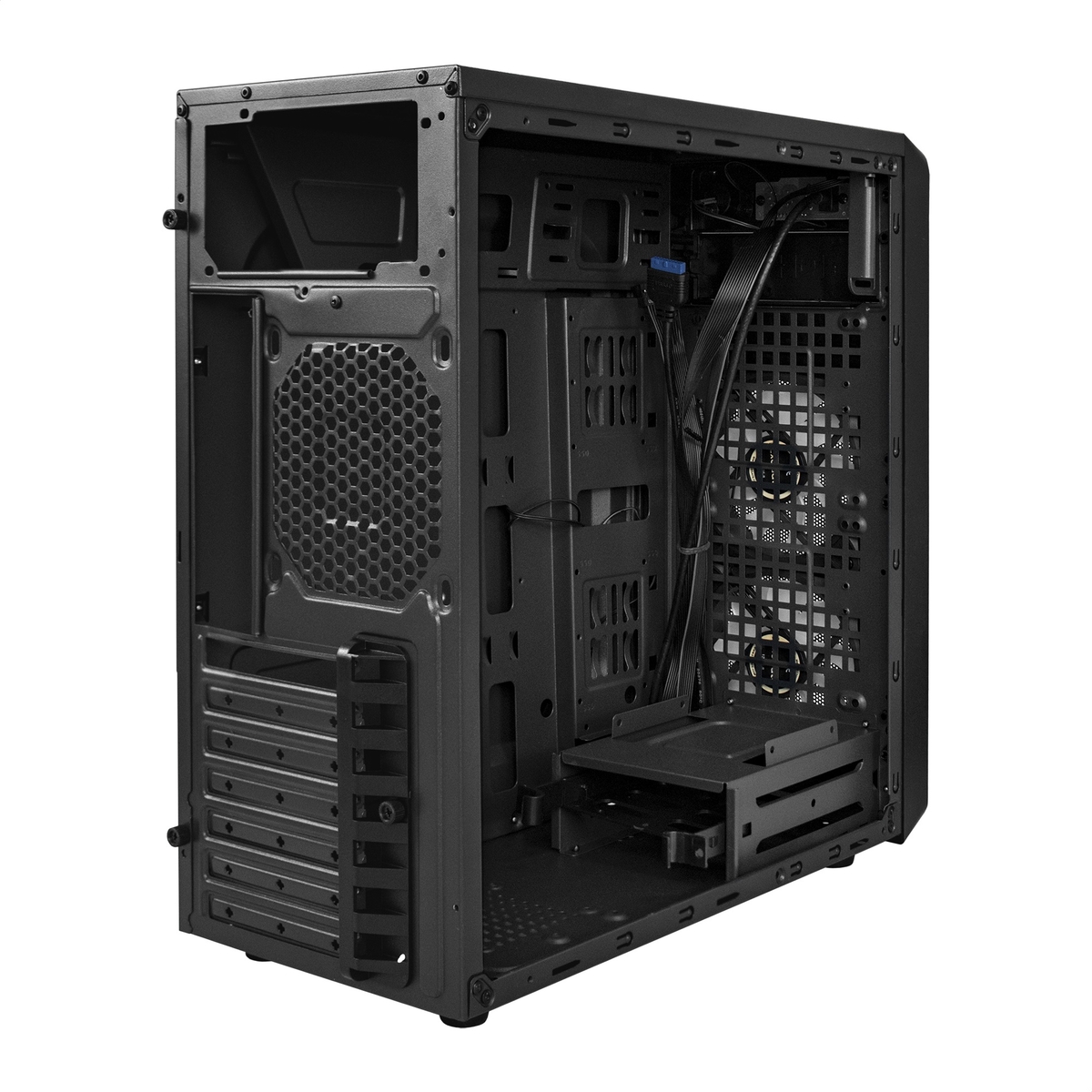

| Construction | |
| External Drive Bay 5,25" | 1 |
| Internal Drive Bay 5,25" | 2 (1 instead of 1 external 5.25") |
| Internal Drive Bay 3,5" | 3 |
| Internal Drive Bay 2,5" | 4 (2 instead of 2 internal 3.5") |
| Expansion Slots | 7 |
| Cooling System | |
| Installed fans on the front panel | 12 cm x 2 |
| Places for installation on the front panel | 12 cm x 2 |
| Places for installation on the top panel | 12 cm x 2 |
| Places for installation on the rear panel | 12 cm x 1 |
| Places to install on the side panel | 12 cm x 1 |
| Recommended ExeGate fans | 12 cm |

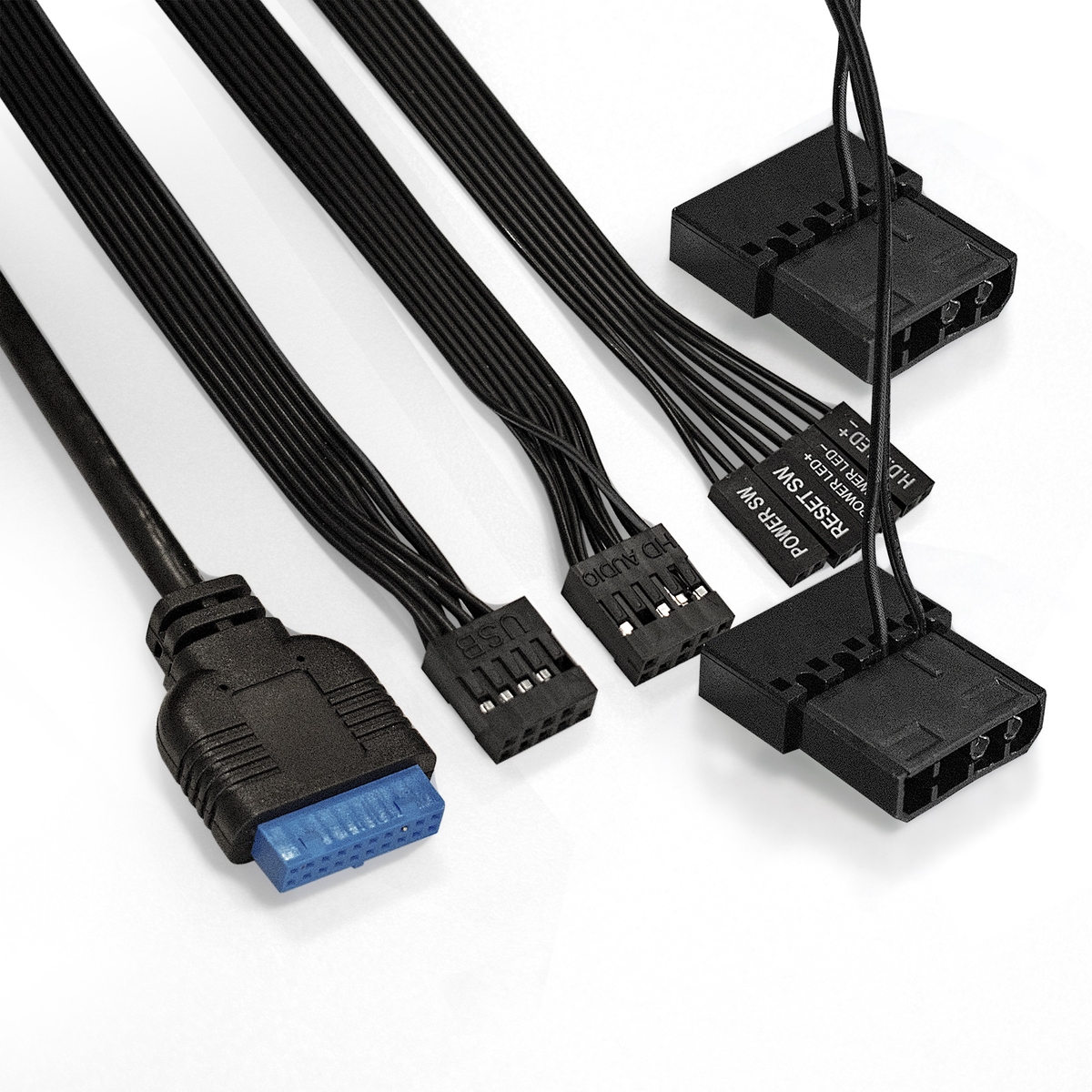

| Interfaces | |
| Interface location | At the top of the front panel |
| USB 2.0 Type-A | 1 |
| USB 3.2 Gen1 Type-A | 1 |
| Audio I/O Ports | HD Audio 2 x 3.5mm |
| Other parameters | |
| Max. motherboard length, mm | 244 |
| Max. height of the CPU fan, mm | 150 |
| Max. PSU length, mm | 240 |
| Max. PSU length with drive opposite, mm | 195 |
| Max. SVGA length, mm | 340 |
| Max. SVGA length with drive opposite, mm | 260 |
| Chassis dimensions | |
| Width, mm | 185 |
| Height, mm | 410 |
| Depth, mm | 370 |
| Case Dimensions | |
| Width, mm | 200 |
| Height, mm | 425 |
| Depth, mm | 415 |
| Carton Dimensions | |
| Width, mm | 230 |
| Height, mm | 460 |
| Depth, mm | 470 |
| Net Weight , kg | 4,5 |
| P/N | EX289007 |
| EAN | 4895205126893 |
